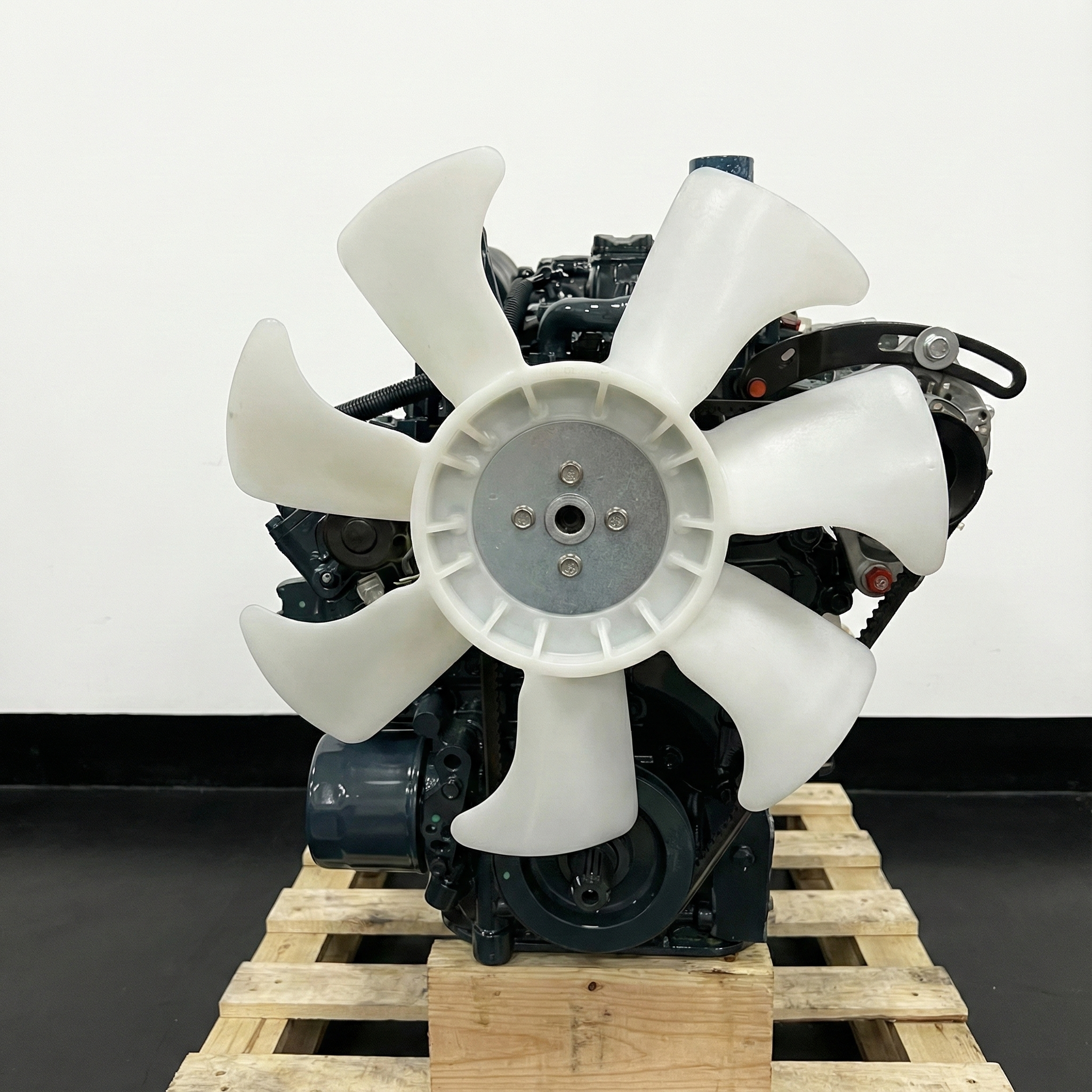

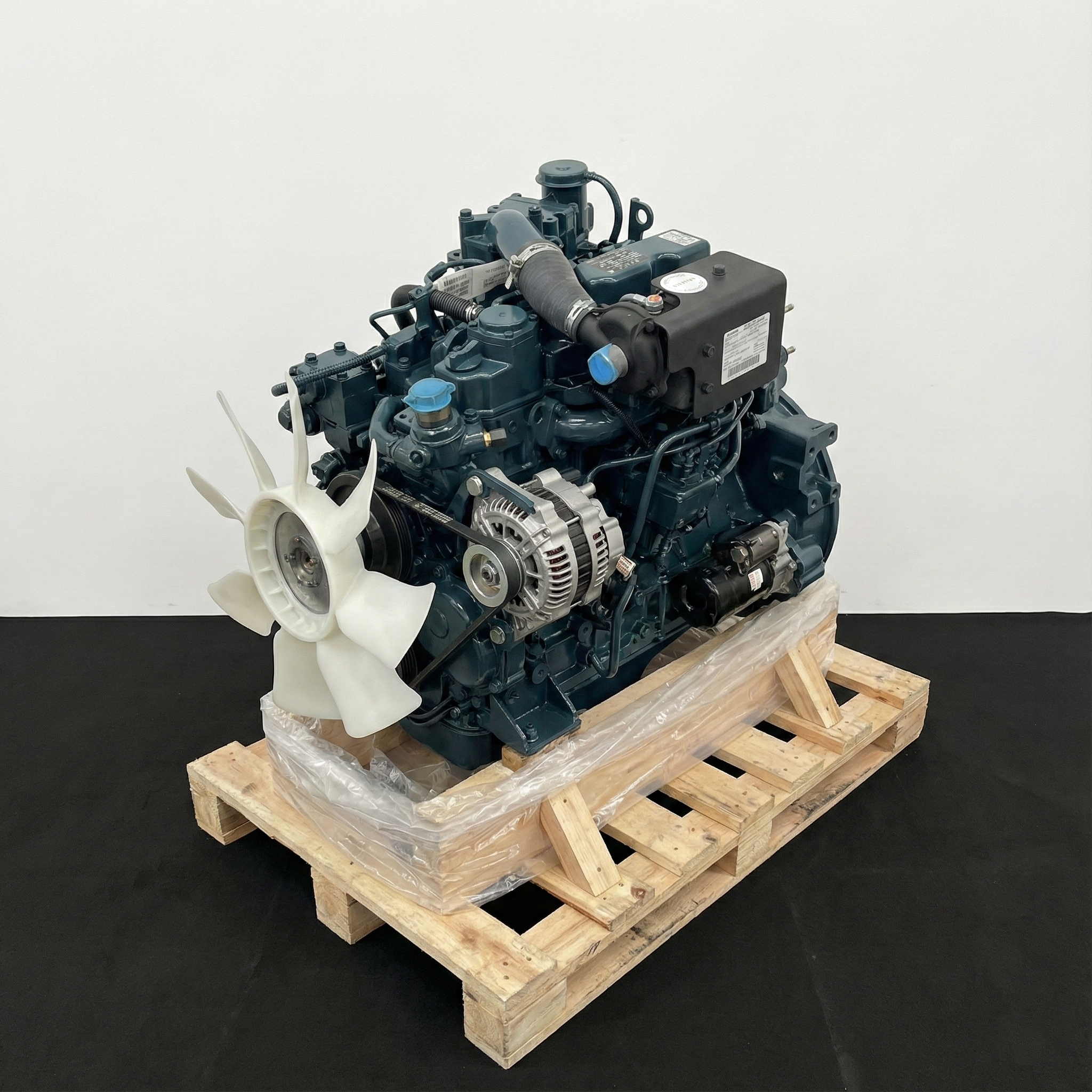

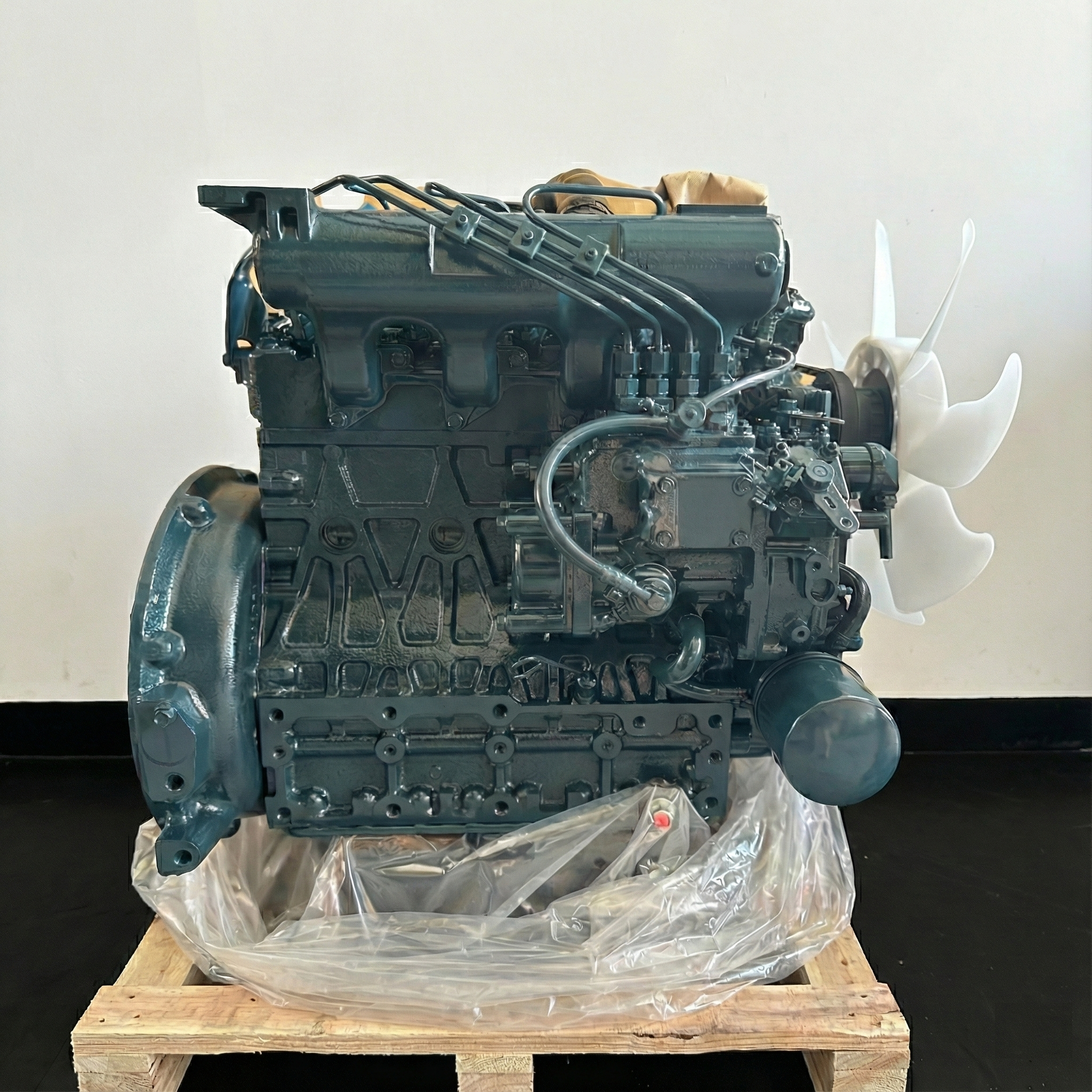

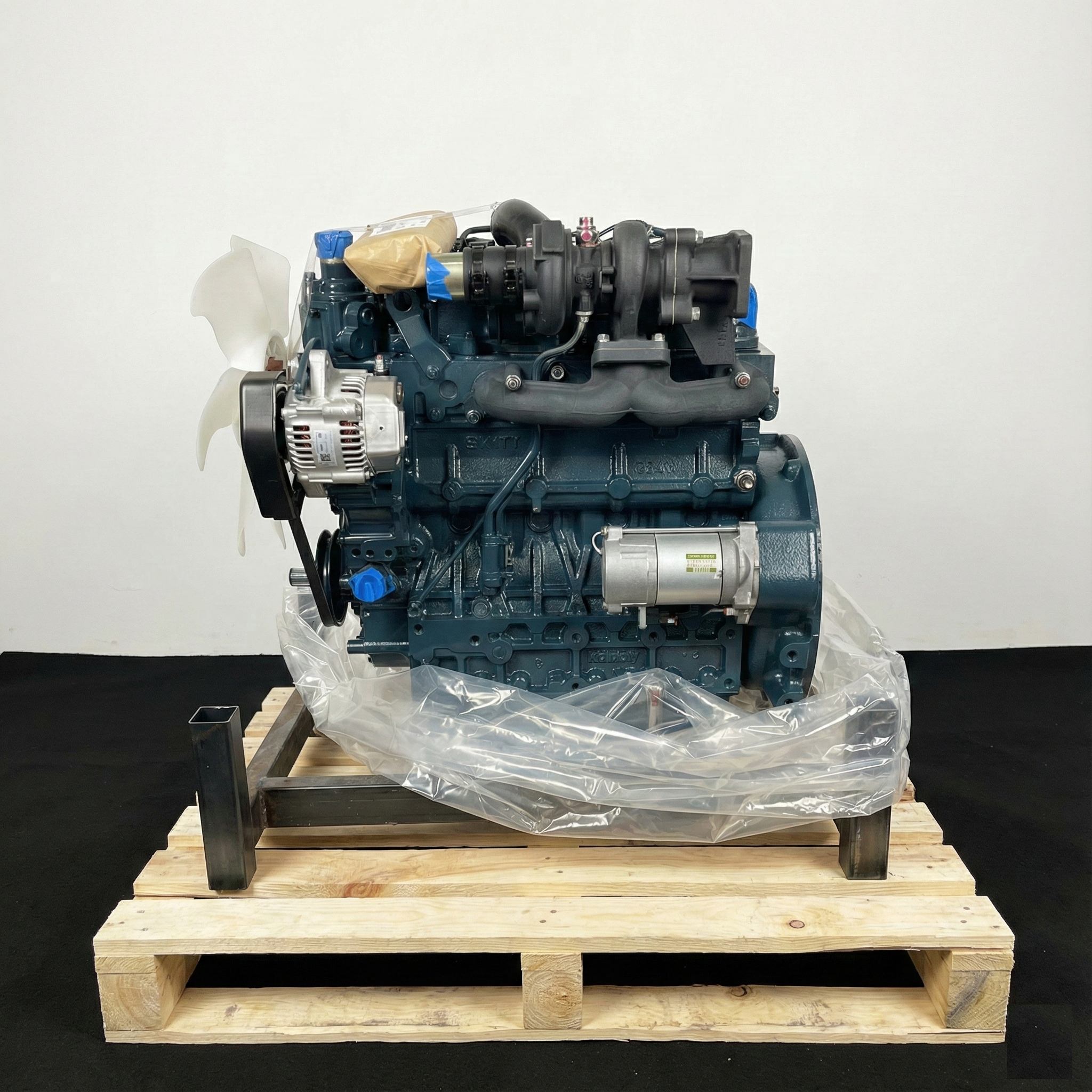

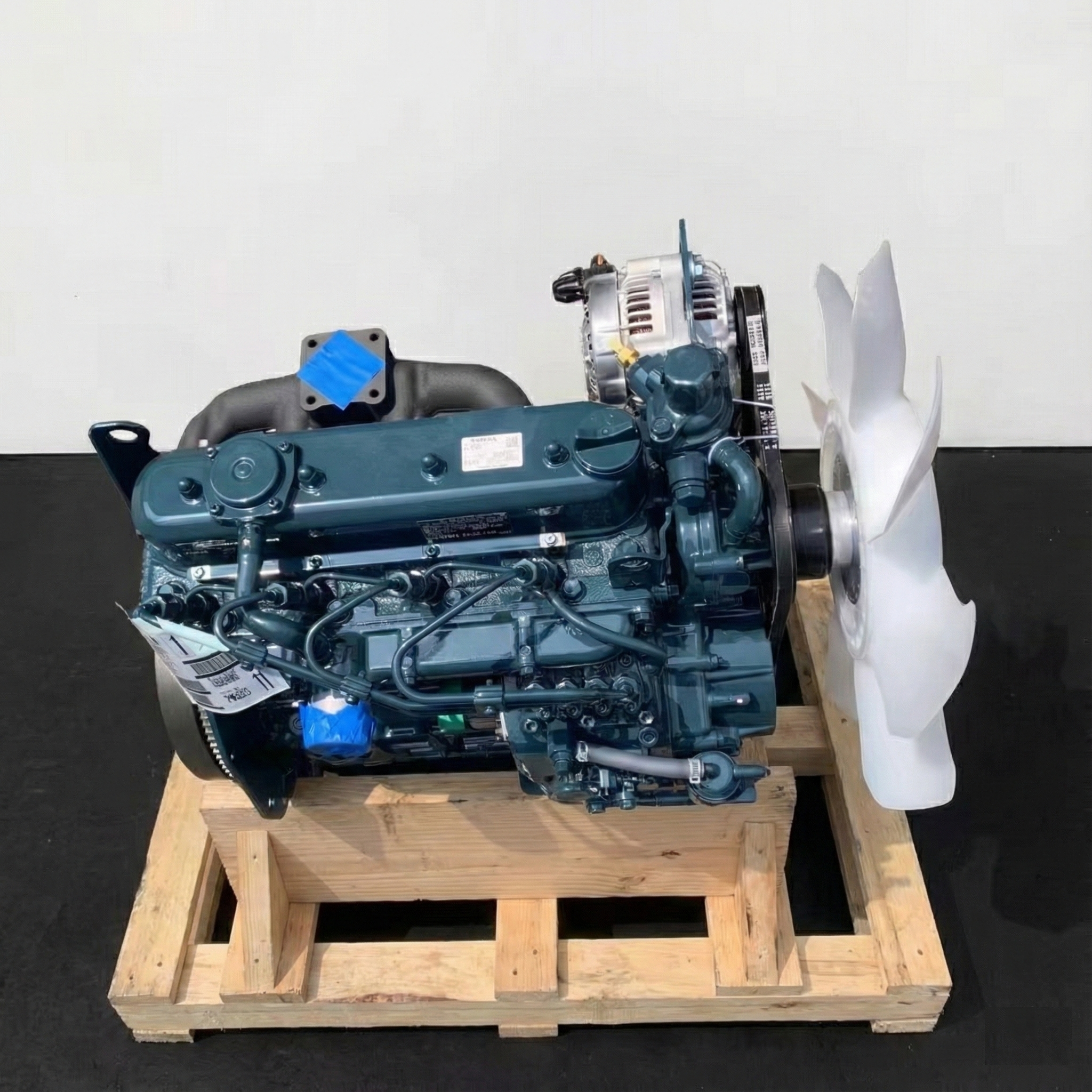

KUBOTA V2403 – New [OEM Build] Engine Assembly

Related Arrangement Numbers

V2403-M-E3B, V2403-M-T-E3B, V2403-M-DI-E3B, V2403-CR-E4B, V2403-CR-TE4B, 1J477-31000, 1G772-00000 & more

Popularly Used In

• Bobcat S130, S150, S160, S185, S205, S510, S530 (Skid Steer Loader)
• Bobcat T140, T180, T190 (Compact Track Loader)
• Bobcat E32, E35, E42, E45, E50, E55 (Compact Excavator)
• Kubota KX121-3, KX161-3, KX040-4, KX057-4, U45, U48, U55 (Excavator)
• Kubota L4701, MX4800, MX5100, MX5200 (Tractor)
• Industrial Applications (Genie Lifts Z-45/25, AUSA Dumpers, Compressors, Generators) & many other models

Technical Data

The Kubota V2403 is a highly reliable vertical 4-cylinder, 4-stroke diesel engine belonging to the 03-M Series. It features a displacement of 2.434 Liters (148.5 cu in) with a bore of 87 mm (3.43 in) and a stroke of 102.4 mm (4.03 in). Depending on the specific configuration, this engine utilizes either Indirect Injection (IDI) or Direct Injection (DI) with Kubota’s E-TVCS combustion system for optimized efficiency. The engine is available in Naturally Aspirated (NA) or Turbocharged (T) configurations, delivering a power output ranging from 36 kW to 48.6 kW (48 HP to 65 HP) at a rated speed of 2700 RPM. It offers robust torque performance, peaking between 158 Nm and 198 Nm (116 lb-ft to 146 lb-ft), making it ideal for demanding industrial and construction environments.

Engine Condition

OEM Distributor Build

• Manufactured by an authorized OEM distributor
• Built using original brand components
• Assembled and tested to OEM tolerances and quality standards
• Warranty coverage and documentation provided by the distributor rather than the original brand
• Ideal alternative where original brand lead times are excessive and a high-quality solution is required
• Suitable for commercial, marine, and export applications

Core Charge Statement

There is no core charge associated with this engine listing. The price listed is outright.

Compatibility & Technical Verification Note

If you are replacing an existing engine assembly or are unsure about compatibility with your current machine or installation, please contact us at engines@motofork.com. One of our technical consultants will review your application and confirm that the engine configuration supplied is an exact match and fully plug-and-play. This technical verification service is provided at no additional cost.

Shipping, Handling & Service Notes

For orders placed with shipping, a pallet offloading fee of USD 120 will apply at the delivery location if a forklift is not available on site. Self-collection from our warehouse is available upon request. Please contact us at engines@motofork.com for coordination.

Any pallet labeling or special shipping instructions must be communicated prior to final packing. Service requests such as warehouse visits, inspections, or special packing arrangements, if requested, are non-refundable.
